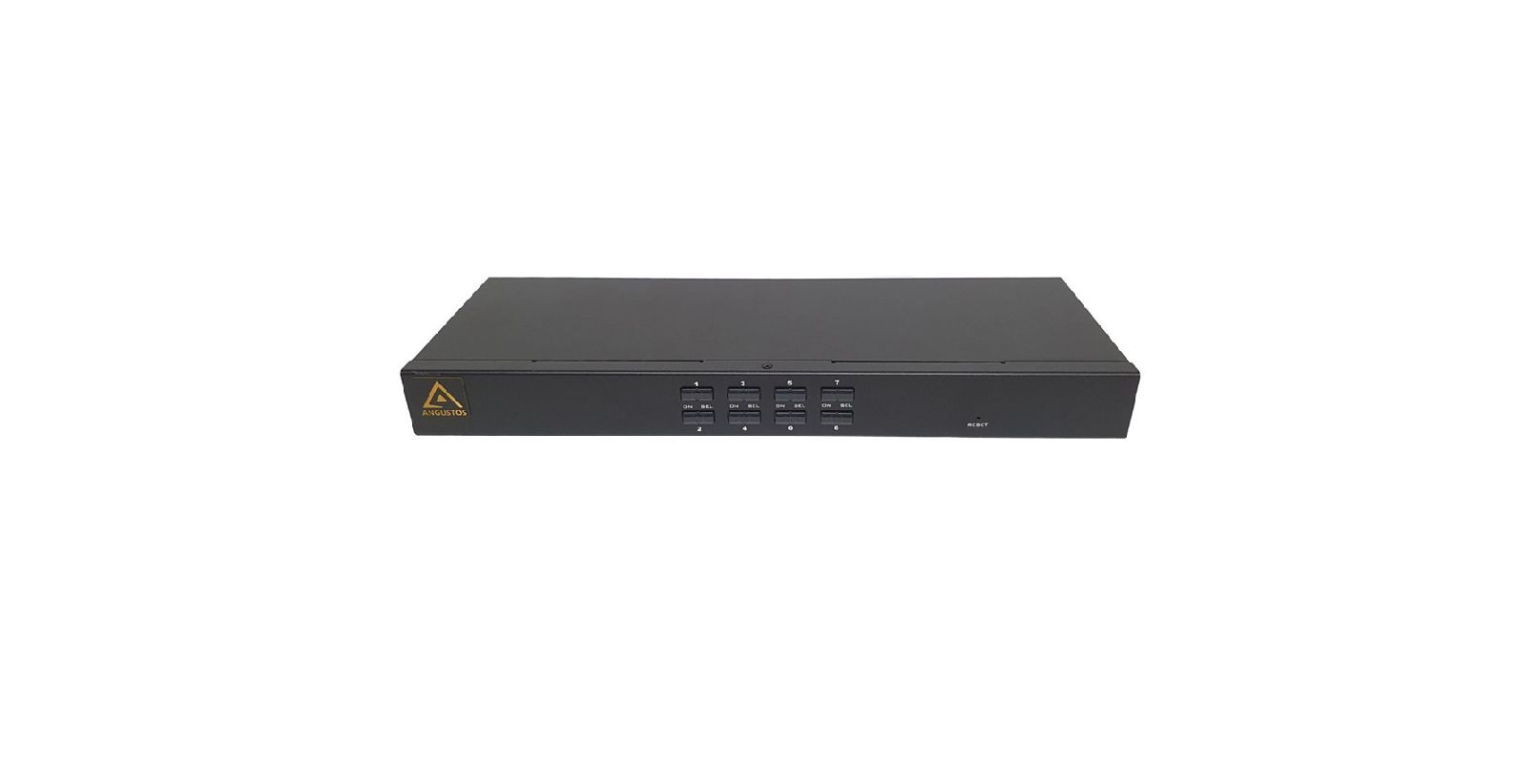

8 Port HDMI KVM Switch – AR-H08L

• Angustos AR-H08L KVM Switch is optimized for high density Rack in modern Data Center. A KVM Switch with 8 ports and supports computers with USB interfaces via cables. All packed in a 1U rackmountable metal housing.
• The short-depth design ultilized for narrow space for short-rack mounting in condensed area. The AR-H08L can control up to 08 computers; with 128 additional KVM switches are cascaded on two more level, a single AR-H08L KVM Switch can control up to 2048 computers.
• In addition, the AH-H08L included the computer selection via front panel pushbuttons, hotkeys and OSD. With all of the technology involved, the AR-H08L KVM Switch has gone beyond the expectations and requirements for a modern Data Center use, which including : short space optimization, exceptional display quality, easy to install, extreme versatility.

High Density Utilization

• One HDMI console controls 8 computers.

• Dual interface supports with user with HDMI – USB keyboards and mice.

• Short-depth overall size allowing user to work with in condensed space of high density Rack

• Multiplatform support: compatible with all operation platforms PC (Windows,Linux and most others), Mac and Sun.

Flexible compatibility

• Superior video quality – up to 3840×2160 (max) @60Hz; DDC2B; 16.7 Mil. Color.

• Cascade up to 2048 computers from a single console (With compatible KVM Switches)

• Auto Video Resolution sensing.

• Keyboard and mouse emulation for seamless switching.

• Computer selection with pushbuttons, hotkeys, and multilingual on-screen display (OSD).

• Two level password security.

• Operates with all software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.

• Keyboard Language supports: English (UK), English (US), German (GER.) Japanese, Korean,Russian, Swedish, Chinese.

Installation Flexibility

• Standard rack mount kit included

• No software required – Plug and Play

• Firmware upgradable

• Supports hot-plugging

• Supports Over IP Module for Remote Control
