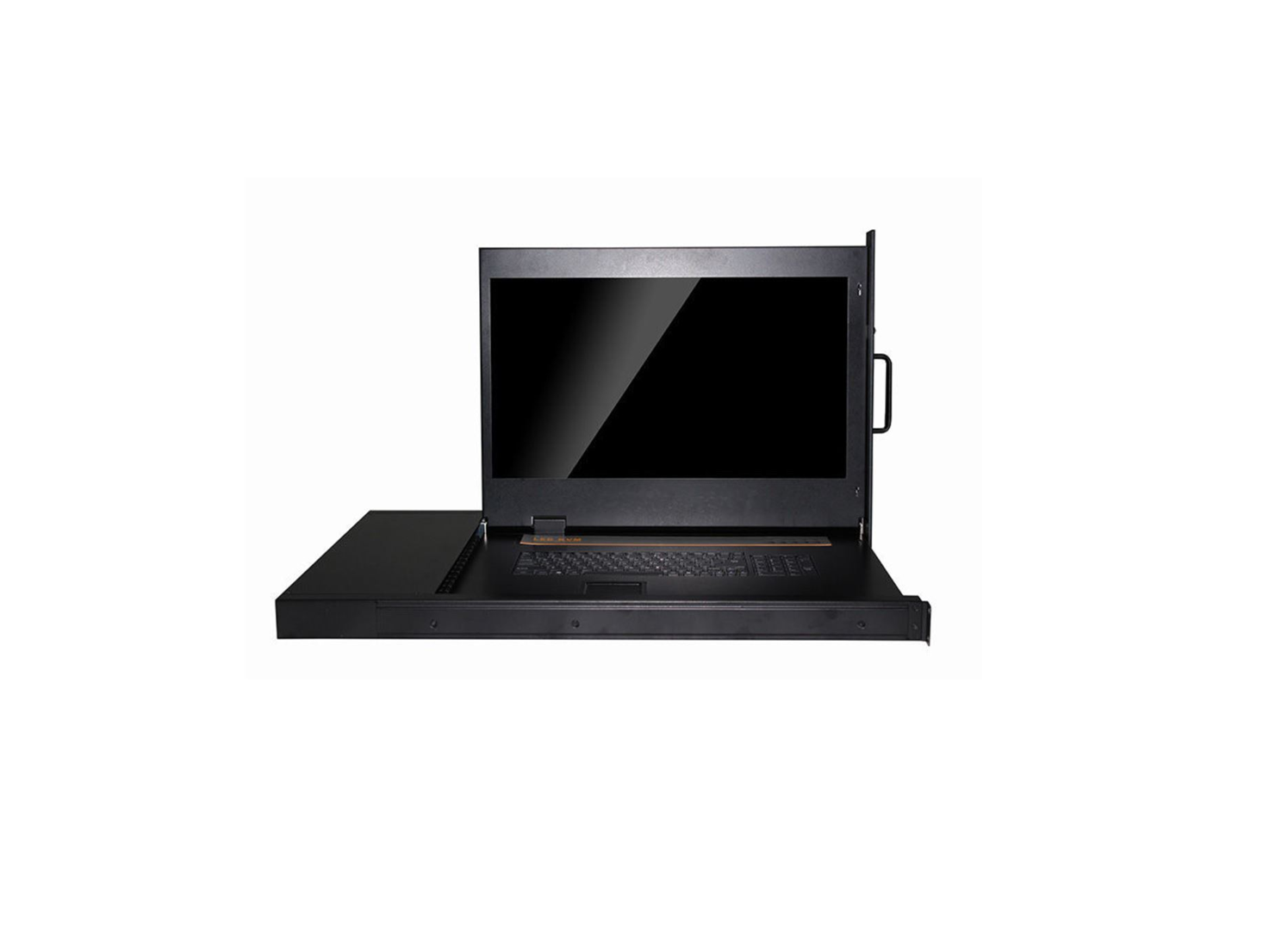

1U rack mount 21.5″ LED KVM switch 8 ports HDB-15 with touch pad+Mouse – AL-V2108P

• Angustos AL-V2108P LCD KVM Console Drawer is optimized for high density Rack in modern Data Center.
• Integrating a 21.5” LED screen, keyboard and mouse pad in a 1U rackmountable sliding housing. The compact design console is ultilized for extreme narrow space and super densed area. The AL-V2108P can be installed and connected with Angustos KVM Switch or other brand KVM for convenience configuration. The AL-V2108P can control up to 08 computers; with 8 additional KVM switches are cascaded, a single AL-V2108P LCD KVM Switch can control up to 128 computers.
• In addition, the AL-V2108P included an additional hot-pluggable USB port that supports other keyboard and mouse for back-up. With all of the technology involved, the AL-V2108P LCD KVM Console has gone beyond the expectations and requirements for a modern Data Center use, which including : short space optimization, exceptional display quality, easy to install, extreme versatility.

High Density Utilization

• Front USB for back up mouse-keyboard.

• LCD KVM console with an 21.5” LED-backlit 4:3 LCD monitor in a single rail design.

• Extreme refresh rate up to 75Hz

• Short-depth overall size allowing user to work with in condensed space of high density Rack

• Slide Lock – secure the console drawer to remain firmly in slide position when not in use.

Flexible compatibility

• Superior video quality – up to 1024 x 768 @75Hz; DDC2B; 16.7 M Color.

• Compatible with Angustos and other brands KVM Switches.

• Cascade up to 128 computers from a single console (With compatible KVM Switches)

• Auto PS/2 and USB interface sensing.

• Keyboard and mouse emulation (PS/2 and USB) for seamless switching.

• Operates with all software and operating  systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.

• Keyboard Language supports: English (UK), English (US), German (GER.) Japanese, Korean,

Russian, Swedish, Chinese.

• Digital & E-Switch key. Mechanical Mute.

Installation Flexibility

• Standard rack mount kit included

• No software required – Plug and Play

• Supports hot-plugging
