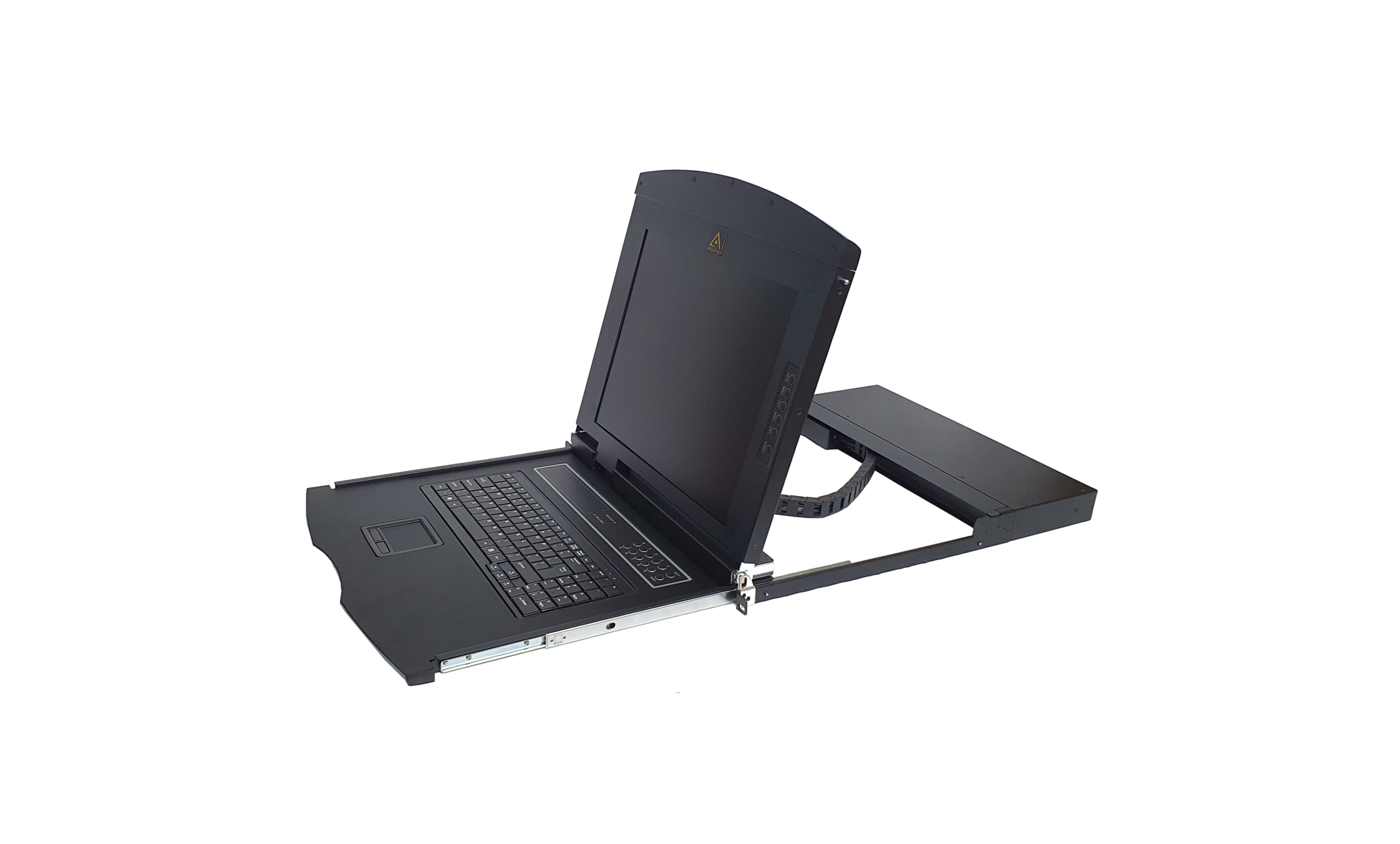

17″ 1U single rail LCD w/8 port Cat-5 KVM Switch – AL-UV708L

• Angustos AL-UV708L LCD KVM Switch is optimized for high density Rack in modernData Center.
• Integrating a 17” LED screen, keyboard and mouse pad in a 1U rackmountable slidinghousing. The short-depth design ultilized for narrow space for short-rack mounting in condensed area. The AL-UV708L can control up to 08 computers; with 8 additional KVMswitches are cascaded, a single AL-UV708L LCD KVM Switch can control up to 128 computers.
• In addition, the AL-UV708L included an additional hot-pluggable USB port thatsupports other keyboard and mouse for back-up. With all of the technology involved, theAL-UV708L LCD KVM Switch has gone beyond the expectations and requirements fora modern Data Center use, which including : short space optimization, exceptional display quality, easy to install, extreme versatility.

High Density Utilization

• Front USB for back up mouse-keyboard.

• Connect to servers with distance up to 40m with single Cat5e / 6 UTP cable

• LCD KVM console with an 17” LED-backlit 4:3 LCD monitor in a single rail design.

• Short-depth overall size allowing user to work with in condensed space of high density Rack

• Slide Lock – secure the console drawer to remain firmly in slide position when not in use.

Flexible compatibility

• Superior video quality – up to 1280 x 1024 @60Hz; DDC2B; 16.7 Mil. Color.

• Cascade up to 128 computers from a single console (With compatible KVM Switches)

• Auto PS/2 and USB interface sensing.

• Keyboard and mouse emulation (PS/2 and USB) for seamless switching.

• Computer selection with pushbuttons, hotkeys, and multilingual on-screen display (OSD).

• Two level password security.

• Operates with all software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.

• Keyboard Language supports: English (UK), English (US), German (GER.) Japanese, Korean, Russian, Swedish, Chinese.

Installation Flexibility

• Standard rack mount kit included

• No software required – Plug and Play

• Firmware upgradable

• Supports hot-plugging

• Supports Over IP Module for Remote Control
