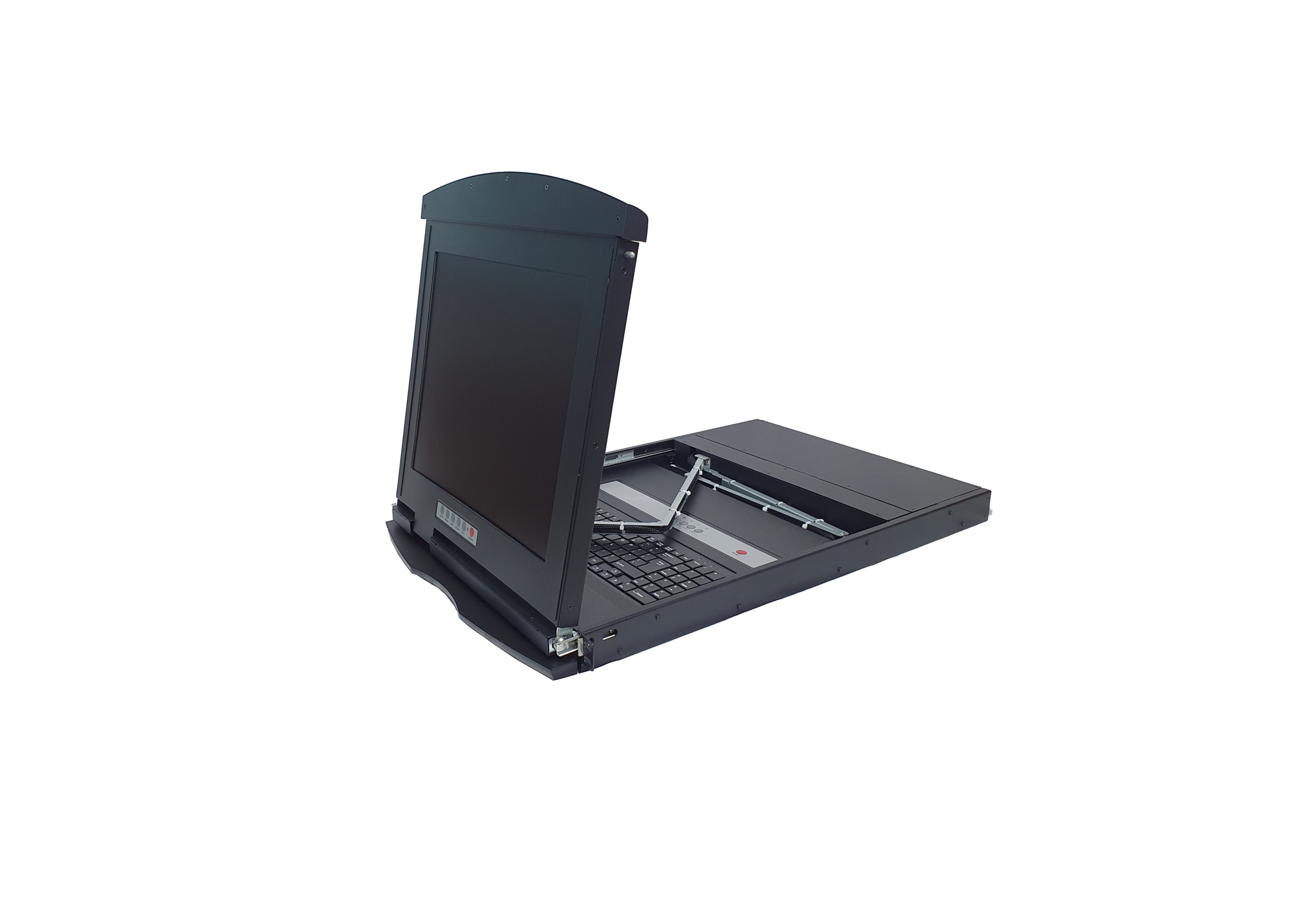

17″ 1U Dual rail LCD w/8 port DB-15 KVM Switch – AL-DV708L

• Angustos AL-DV708L LCD KVM Switch isoptimized for high density Rack in modern Data Center.
• Integrating a 17” LED screen, keyboard and mouse pad in a 1U rackmountable dual sliding housing. The dual rail design console is ultilized for narrow space for short-rack mounting in condensed area. The AL-DV708L can control up to 08 computers; with 256 additional KVM switches are cascaded on two more level, a single AL-DV708L LCD KVM Switch can control up to 8192 computers.
• In addition, the AL-DV708L included an additional hot-pluggable USB port that supports other keyboard and mouse for backup. With all of the technology involved, the AL-DV708L LCD KVM Switch has gone beyond the expectations and requirements for a modern Data Center use, which including : short space optimization, exceptional display quality, easy to install, extreme versatility.

High Density Utilization

• Front USB for back up mouse-keyboard.

• LCD KVM console with an 17” LED-backlit 4:3 LCD monitor in a dual rail design.

• Short-depth overall size allowing user to work with in condensed space of high density Rack

• Slide Lock – secure the console drawer to remain firmly in slide position when not in use.

Flexible compatibility

• Superior video quality – up to 1280 x 1024 @60Hz; DDC2B; 16.7 Mil. Color.

• Cascade up to 8192 computers from a single console (With compatible KVM Switches)

• Auto PS/2 and USB interface sensing.

• Keyboard and mouse emulation (PS/2 and USB) for seamless switching.

• Computer selection with pushbuttons, hotkeys, and multilingual on-screen display (OSD).

• Two level password security.

• Operates with all software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS.

• Keyboard Language supports: English (UK), English (US), German (GER.) Japanese, Korean, Russian, Swedish, Chinese.

Installation Flexibility

• Standard rack mount kit included

• No software required – Plug and Play

• Firmware upgradable, hot-plugging

• Supports Over IP Module for Remote Control

• Dual Rail design – Keyboard and Touchpad rail can be pushed back for space saving.
